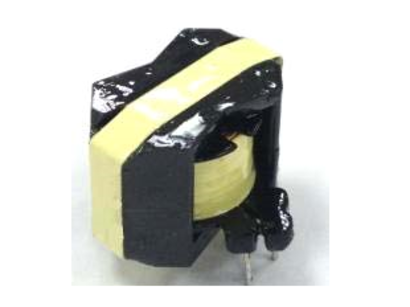

Power Transformer / Inductor
FEATURES/SPECIFICATION
RM6 Package in THT
Operating temperature range: -40°C to +85°C
Wave solder condition : Maximum temperature is
260°C+/-3°C , time is 5~6sec
(Refer to SONY SS-00254-4 standard)
| Specifications @ 25℃ | ||||
| Inductance Lp @10KHz, 01V 6 - 2 | Leakage Inductance Ls @100KHz, 0.1V 6 - 2 (short 3+5) | DCR 6 - 2 | DCR 3 - 5 | Isolation Voltage 1sec, 3mA 6 to 3 |
| 1.40mH (±10%) | 50uH max | 1.5Ω | 0.6Ω | 1500Vac |
